Stormtech MC Chamber End Cap Insertion

Filename:
Stormtech MC Chamber End Cap Insertion.dwg

Stormtech MC Chamber End Cap Insertion

This document is the StormTech MC Chamber End Cap Insertion. Detail with notes and component descriptions provided.

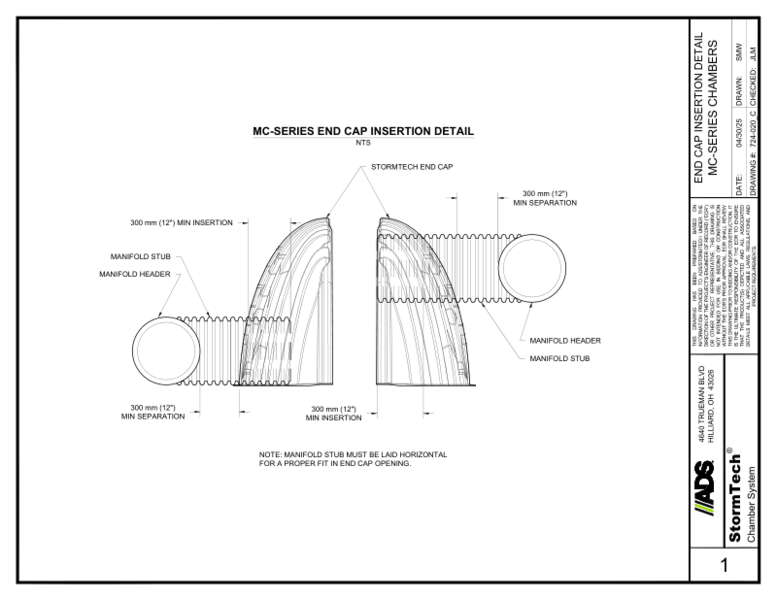

The MC Series End Cap Insertion detail shows the Stormtech end cap, minimum insertion, manifold stub, manifold header and minimum separation.

A note states that all manifold stubs must be laid horizontal for a proper fit in the end cap opening.
