MC-3500 Stormtech Isolator Row

Filename:
MC-3500 Stormtech Isolator Row.dwg

MC-3500 Stormtech Isolator Row

This document details the MC-3500 StormTech Isolator Row. Details and inspection/maintenance steps included.

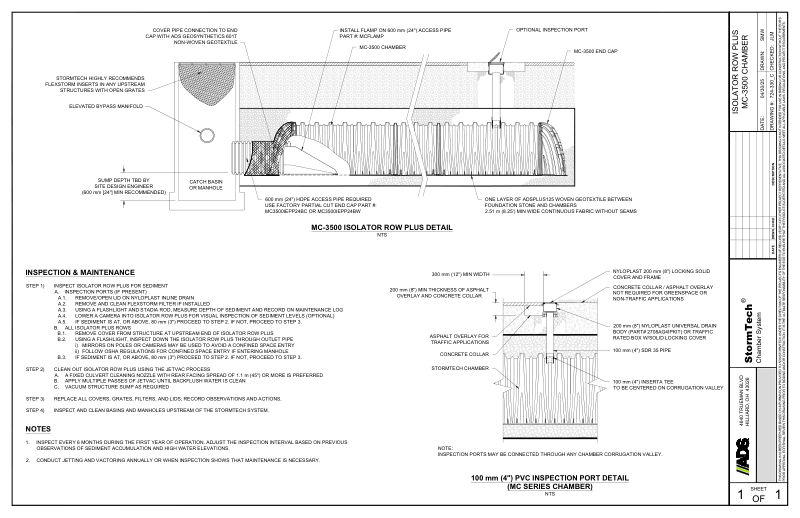

StormTech Isolator Row Plus detail diagram shows a cross section of the cover pipe connection to end cap, flamp access pipe install, the MC-3500 chamber, MC-3500 end cap, optional inspection port, sump depth, catch basin, HDPE access pipe and geotextile layer between foundation stone and chambers.

The steps under inspection and maintenance require inspection of Isolator Row Plus for sediment, how to clean the Isolator Row Plus using the jetvac process, replacing covers, grates, filters and lids while recording observations and actions and inspection/cleaning basins and manholes upstream from the StormTech system.

A note suggests inspection occur every 6 months during the first year of operation and to adjust schedule based on observations of sediment. A maintenance note asks to conduct jetting and vactoring annually or when maintenance is necessary.

A 4” PVC inspection port detail shows the MC series chamber. The concrete collar, minimum widths, asphalt overlay, Stormtech chamber and Nyloplast locking solid locking cover, Nyloplast drain body, SDR 35 pipe and Inserta Tee to be centered on corrugation valley. A note suggests inspection ports may be connected through any chamber corrugation valley.
