 Lined System Cross Section Aquabox 2.5

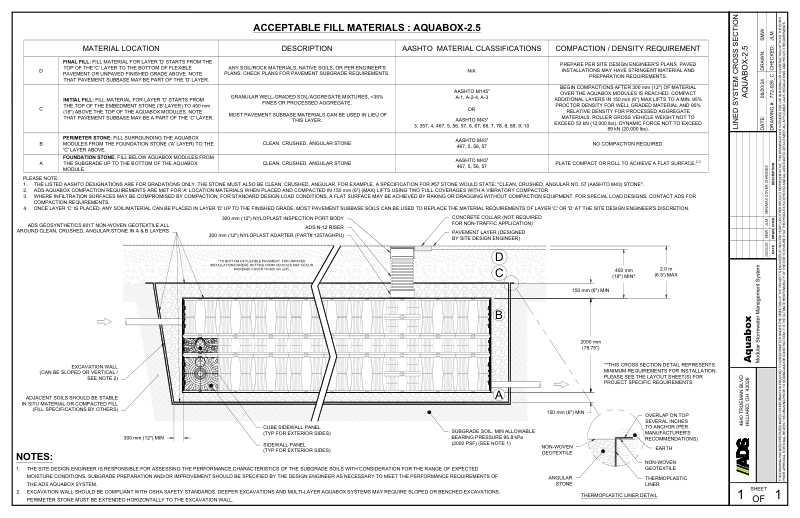

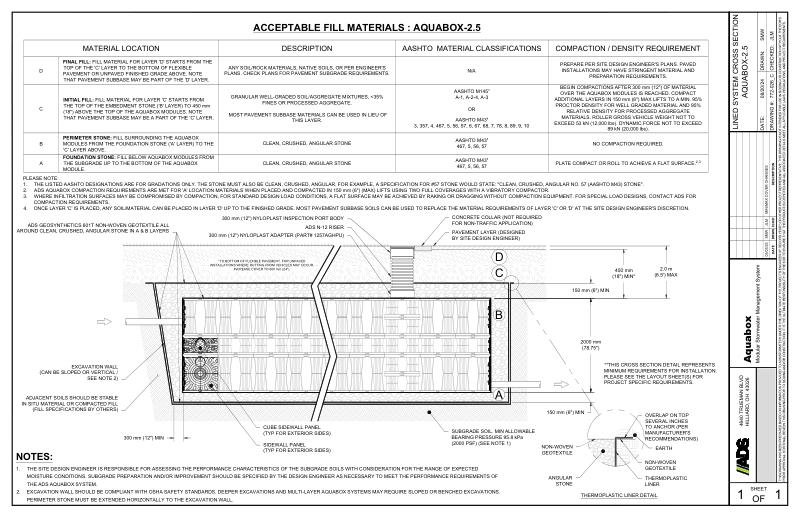

This document is the Lined System Cross Section Aquabox 2.5. Cross section of the Aquabox, materials table with notes provided.

The acceptable fill materials table features information for material location, description, AASHTO material classifications and compaction/density requirement. Notes suggest that the listed AASHTO designations are for gradations only. The ADS Aquabox compaction requirements, infiltration surface compaction, infiltration surface compromises and finished grade layers are also discussed.

The cross section shows the ADS Geosynthetics non-woven geotextile around clean/crushed/angular stone, Nyloplast inspection port body, ADS N-12 riser, Nyloplast adapter, concrete collar, pavement layer, excavation wall, adjacent soils, cube sidewall panel, sidewall panel and subgrade soil. The detail represents minimum requirements for installation.

The thermoplastic liner detail shows the non-woven textile, angular stone, thermoplastic liner, earth and position of overlap on top several inches to anchor.

Notes ask that the site design engineer assess the subgrade soils and the excavation wall should be compliant with OSHA safety standards.
