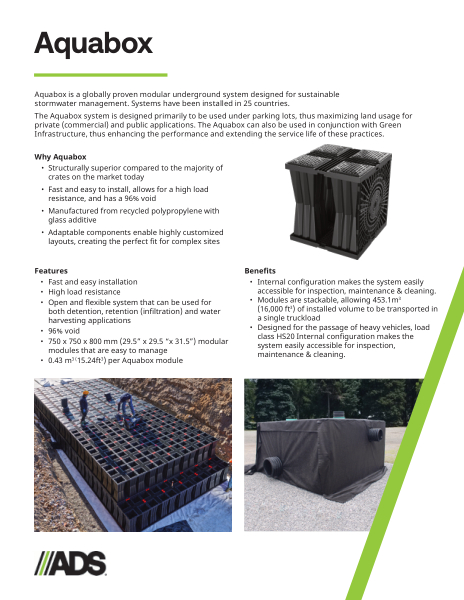

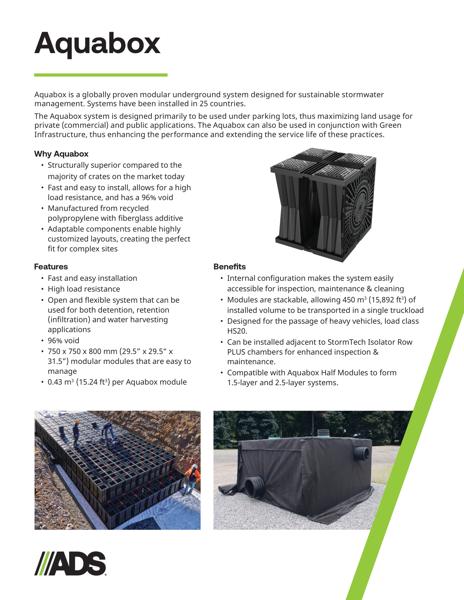

This document is the Aquabox Product Sheet. Features, benefits, installation discussed with photographs, table and figures.

Aquabox is a globally proven modular underground system designed for sustainable stormwater management. Systems have been installed in 25 countries. The Aquabox system is designed primarily to be used under parking lots, thus maximizing land usage for private (commercial) and public applications. The Aquabox can also be used in conjunction with Green Infrastructure, thus enhancing the performance and extending the service life of these practices.

Aquabox is structurally superior compared to the majority of crates on the market today. Fast and easy to install, allows for a high load resistance, and has a 96% void. Manufactured from recycled polypropylene with glass additive. Adaptable components enable highly customized layouts, creating the perfect fit for complex sites.

Features include fast and easy installation, high load resistance, open and flexible system that can be used for both detention, retention (infiltration) and water harvesting applications, 96% void, 750 x 750 x 800 mm (29.5” x 29.5 “x 31.5”) modular modules that are easy to manage and 0.43 m3 (15.24ft3) per Aquabox module.

Benefits are internal configuration makes the system easily accessible for inspection, maintenance & cleaning. Modules are stackable, allowing 453.1m3 (16,000 ft3) of installed volume to be transported in a single truckload. Designed for the passage of heavy vehicles, load class HS20 Internal configuration makes the system easily accessible for inspection, maintenance & cleaning.

Photographs of the Aquabox modules with specification table for dimension, weight, material, net volume, porosity, pallet size and number of pieces per pallet provided. Cross section and figures explained.
