SC-160LP StormTech Technical Specifications

Filename:
SC-160LP StormTech Technical Specifications.dwg

SC-160LP StormTech Technical Specifications

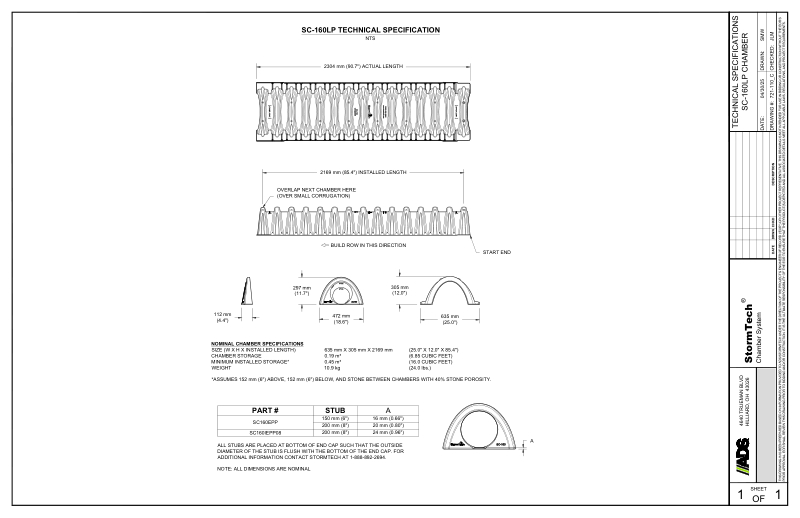

The SC-160LP StormTech Technical Specifications with nominal chamber specifications, part number chart and details are provided.

The specification show cross sections of various chamber parts. Chamber, arch and end cap dimensions are shown.

DC-740 technical detail with nominal chamber specifications with dimensions, storage and weight is included.

A chart detailing part numbers, stub, A and detail are shown.
