Technical Specification Aquabox Full Module

Filename:
Technical Specification Aquabox Full Module.dwg

Technical Specification Aquabox Full Module

This document describes the Technical Specifications Aquabox Full Module. It includes details of components and a stub table with measurements.

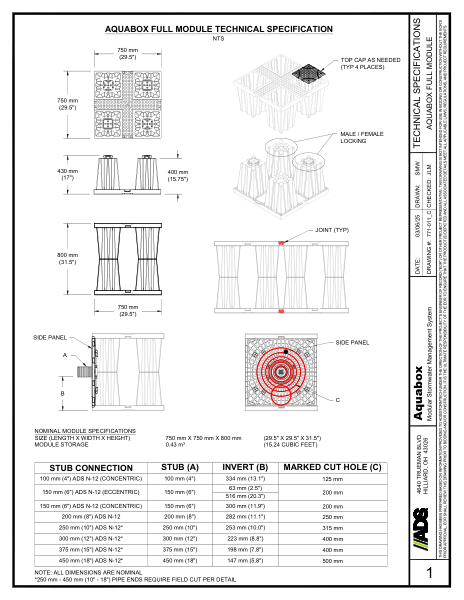

The Aquabox full modules details show the top view with top cap as needed, bottom view with male/female locking, side view with joint and side panel. Nominal Module specifications listed.

The stub table shows the measurements for the stub connection, stub (A), invert (B) and marked cut hole (C).
