Stormtech SC-800 Isolator Row
Filename:
Stormtech SC-800 Isolator Row.pdf

This document details the StormTech SC-800 Isolator Row. Details and inspection/maintenance steps included.

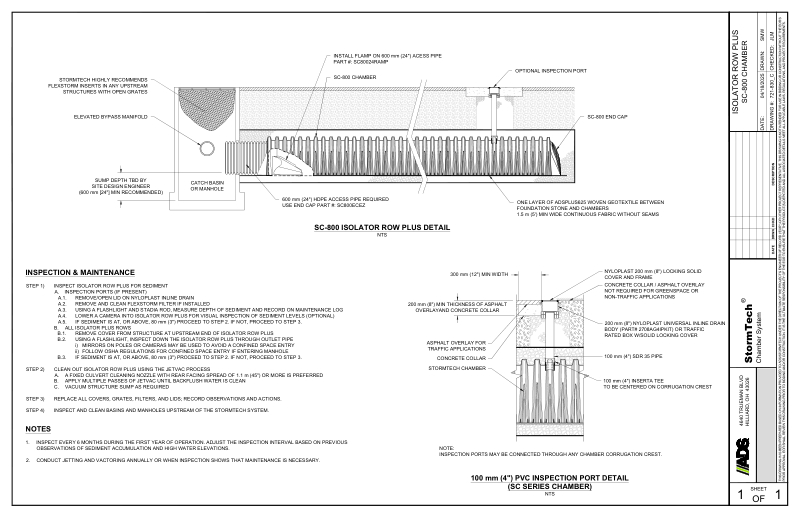

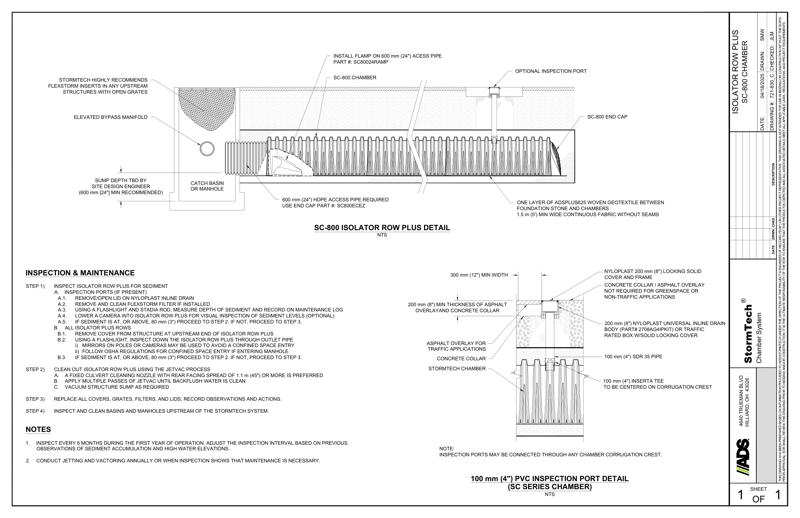

StormTech Isolator Row Plus detail diagram shows an optional inspection port, optional flexstorm inserts, SC-800 end cap, elevated bypass manifold, sump depth, catch basin, HDPE access pipe and geotextile layer between foundation stone and chambers.
The steps under inspection and maintenance require inspection of Isolator Row Plus for sediment, how to clean the Isolator Row Plus using the jetvac process, replacing covers, grates, filters and lids while recording observations and actions and inspection/cleaning basins and manholes upstream from the StormTech system.
A note suggests inspection occur every 6 months during the first year of operation and to adjust schedule based on observations of sediment. A maintenance note asks to conduct jetting and vactoring annually or when maintenance is necessary.
A 4” PVC inspection port detail shows the SC series chamber. The concrete collar, Nyloplast locking solid cover/frame, asphalt overlay, 4” SDR 35 pipe, Nyloplast universal inline drain body, 4” inserta TEE to be centered on corrugation crest, minimum width requirements with the StormTech chamber position underneath. A note suggests inspection ports may be connected through any chamber corrugation crest.
