Stormtech Underdrain Detail

Filename:
Stormtech Underdrain Detail.dwg

Stormtech Underdrain Detail

This document is the StormTech Underdrain Detail. Chamber below structure and side view details explained with descriptions and notes provided.

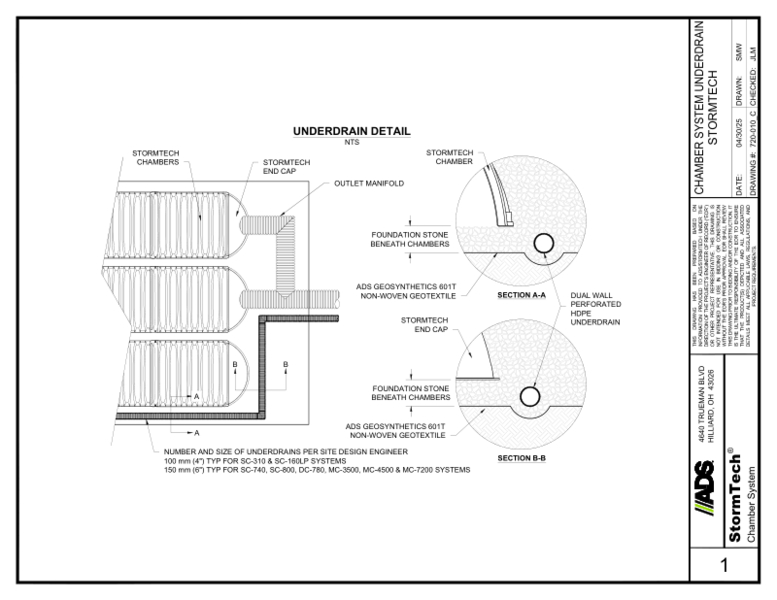

The StormTech Underdrain Detail shows the StormTech Chambers, StormTech end cap, outlet manifold and notes explaining the number and size of underdrains per site engineer specifications.

The Section A-A side view detail shows the StormTech Chamber, foundation stone beneath chambers, ADS Geosynthetic 601T non-woven geotextile and dual wall perforated HDPE underdrain.

The Section B-B side view detail shows the StormTech end cap, foundation stone beneath chambers, ADS Geosynthetic 601T non-woven geotextile and dual wall perforated HDPE underdrain.
