MC-3500 Stormtech Technical Specifications
Filename:
MC-3500 Stormtech Technical Specifications.dwg

The MC-3500 StormTech Technical Specification with chamber specifications, nominal end cap specifications, part numbers and details are shown.

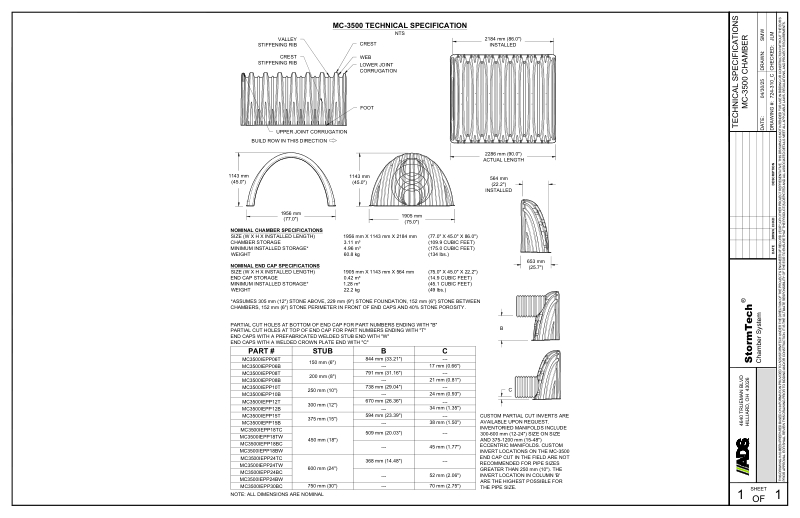

The specification show cross sections of various chamber parts. MC-3500 technical detail with chamber specifications, nominal end cap specifications, part numbers and drawings are shown. The side view shows the valley stiffening rib, crest, web, upper joint corrugation, crest stiffening rib, foot and lower joint corrugation.
Custom prefabricated inverts are shown. Manifold and end cap cut notes are included.
A part number chart lists measurements for stub, B/C dimensions.
